NX-DX1NT1600 | Digital Input Module

Introducing the Azbil NX-DX1 Series Digital Input Module designed for industrial automation, process control, and energy management, offering a high-performance, scalable, and cost-effective solution. These network instrumentation modules feature Ethernet and RS-485 communication, allowing seamless integration into distributed control systems.
With up to 16 digital inputs, these modules support high-speed (5 kHz) and low-speed (100 Hz) pulse detection, making them ideal for real-time data acquisition and pulse totalization for energy monitoring. The NX-DX2 model includes additional features like event output and nonvolatile memory backup, ensuring consistent data retention. The SLP-NX Smart Loader Package enables remote monitoring and easy setup over an Ethernet network.

Specifications:

• 6 digital inputs per module
• Ethernet and RS-485 communication for flexible networking
• High-speed (5 kHz) and low-speed (100 Hz) pulse input support
• Pulse totalization for energy monitoring applications
• Nonvolatile memory backup for data retention (NX-DX2)

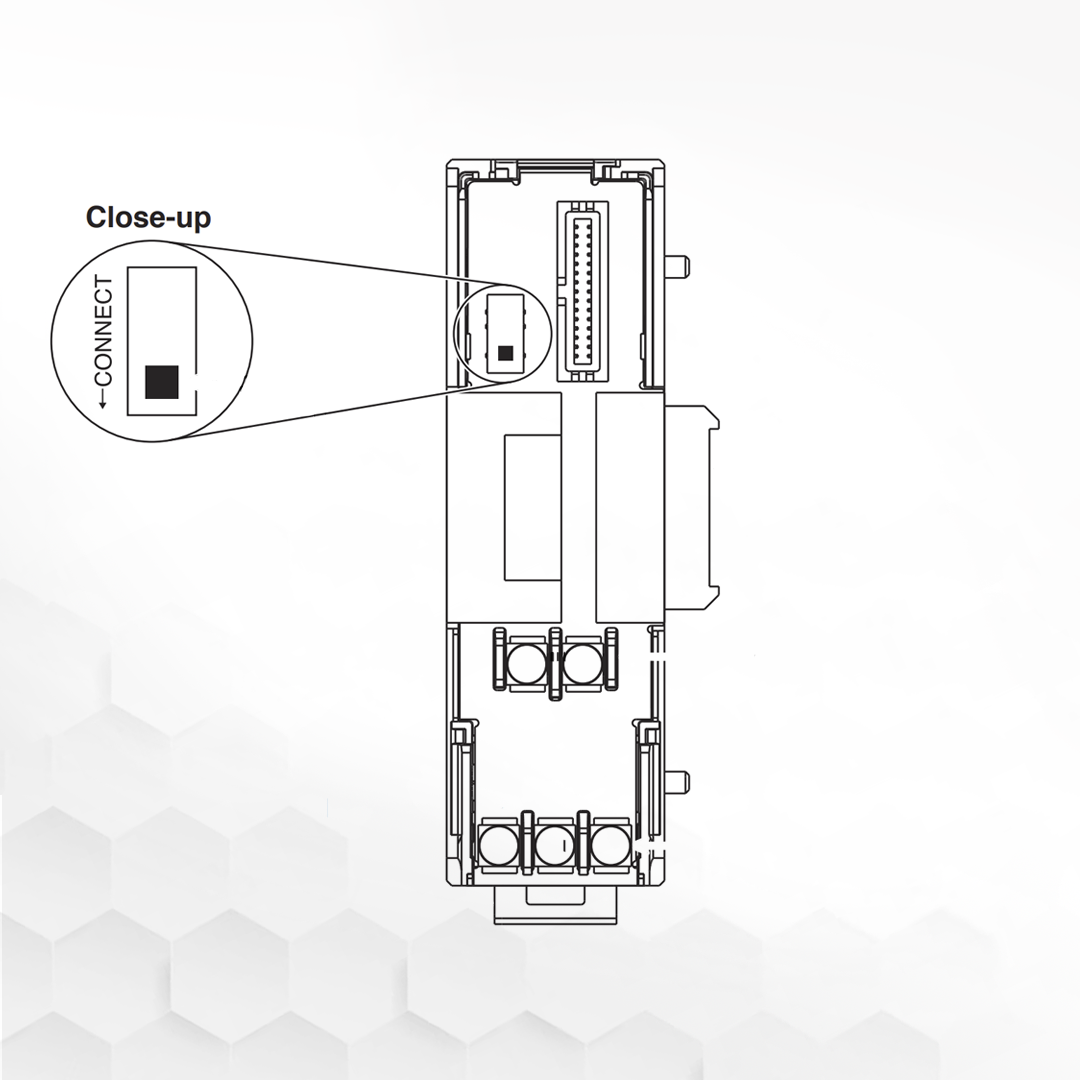

• Daisy-chain side connectors for reduced wiring
• Event output function (NX-DX2) for triggered operations
• Chattering elimination and input delay processing

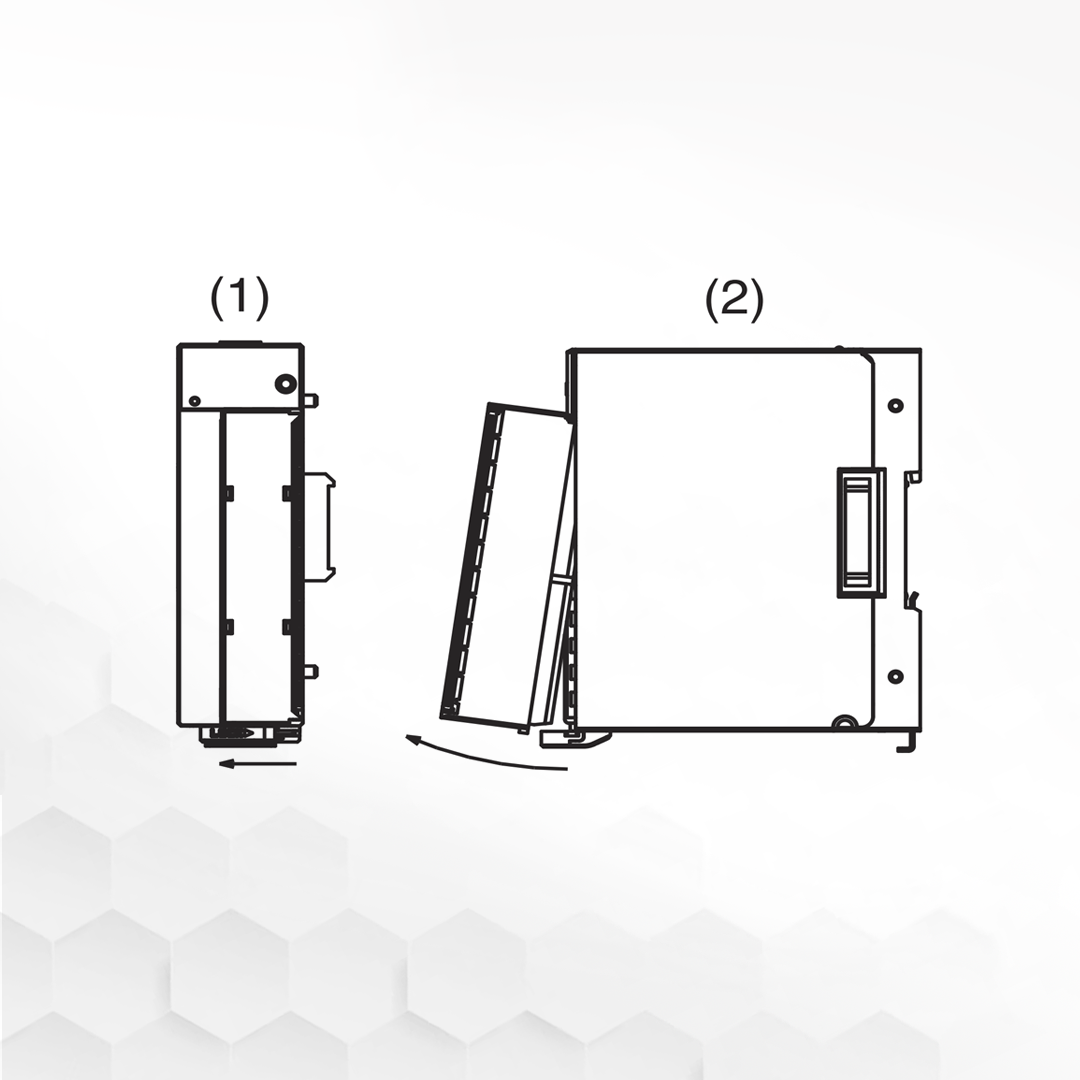

• 3-part structure for easy maintenance
• DIN rail mounting for secure installation
• Wide operating temperature range: 0 to 50°C
• 24 Vdc power supply with low power consumption (4W max.)

Upgrade with Azbil NX-DX1 Digital Input Module With side connectors for daisy-chain connection, these modules simplify wiring and optimize installation in distributed control environments. Whether used in power monitoring, flow rate measurement, or process control, the NX-DX1/DX2 modules provide a reliable and efficient solution for automation needs. #digitalInputModule #Azbil #CascadeIndustrial
