Top Rated Products
- CRT Series Right Angle Check Valve for efficient hydraulic flow control
- Compact design for space-constrained installations
- Max Pressure: 25 MPa (3,630 PSI)
- Flow Rates: CRT-03 (40 L/min), CRT-06 (125 L/min), CRT-10 (250 L/min)
- Cracking Pressure Options: 0.04 MPa, 0.35 MPa, 0.5 MPa
- Mounting Types: Threaded or sub-plate
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.

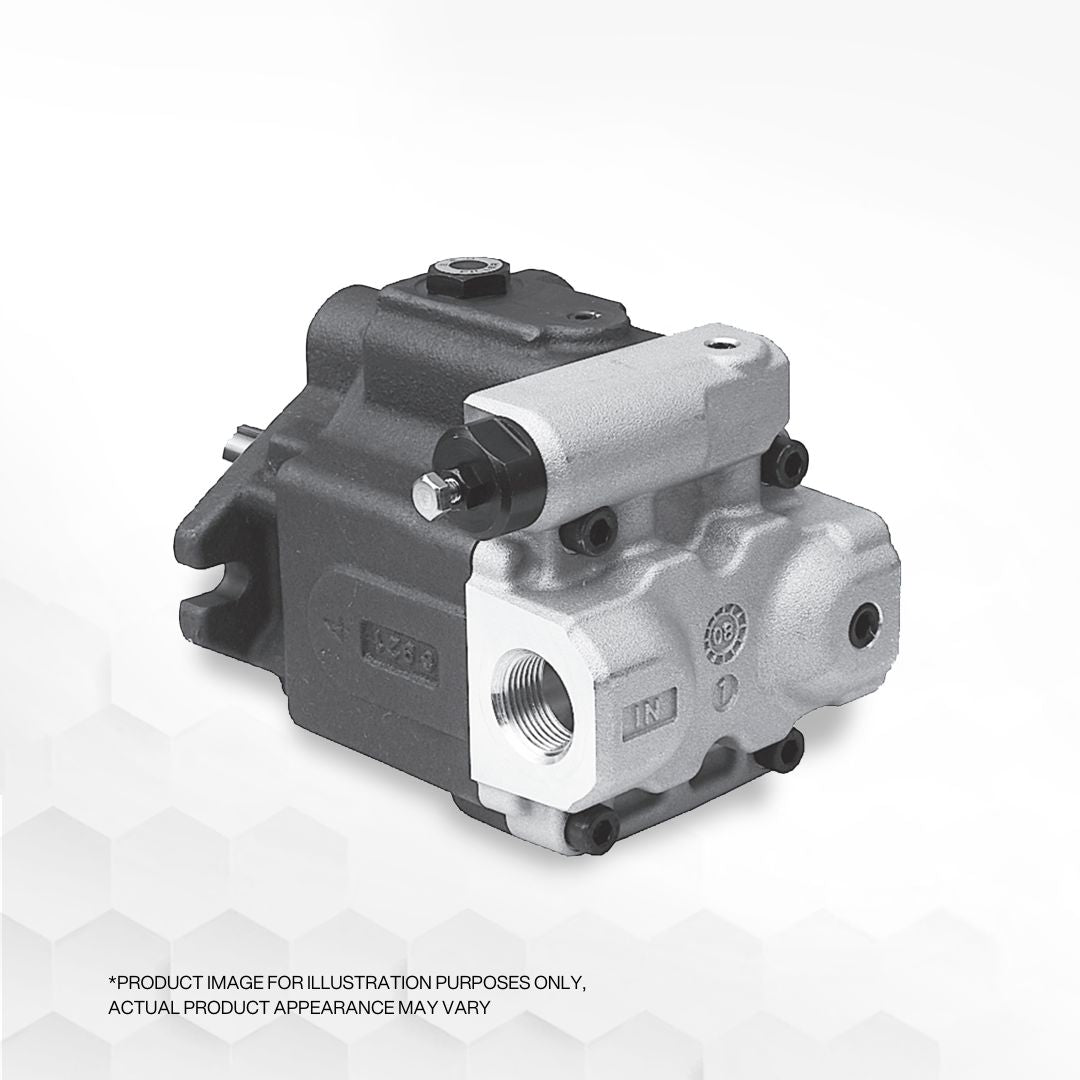

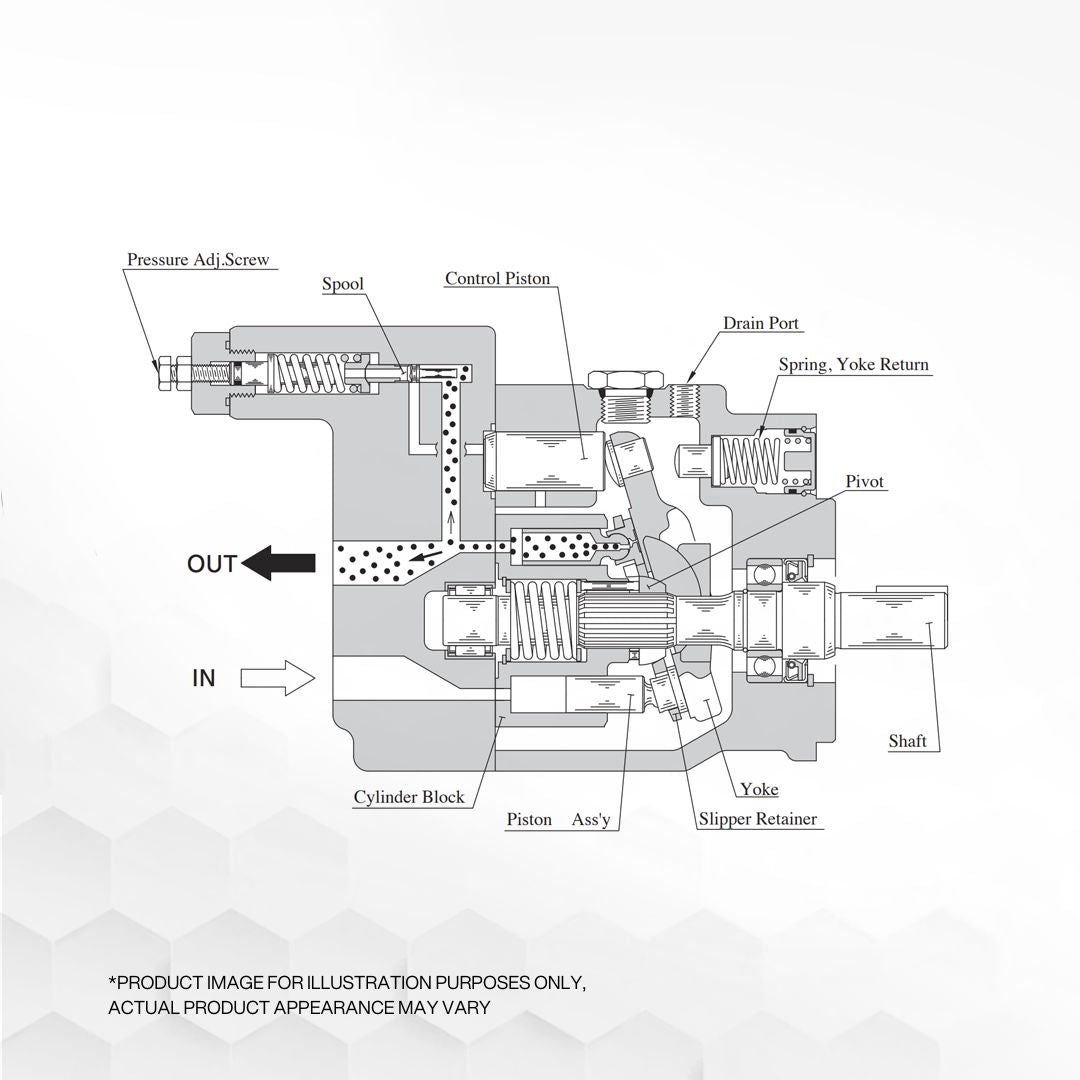

- Pressure Compensator Type Pump.
- Compact, durable design for continuous, heavy-duty use.
- Automatic pressure adjustment ensures stable flow and efficiency
- Geometric Displacement: PM10 (10 cm³/rev) to PM37 (36.9 cm³/rev)
- Operating Pressure: 7 to 16 MPa
- Electric Motor: 0.75 kW to 5.5 kW × 4P
- Shaft Speed: 1400 to 1740 r/min
- Easy installation, minimal maintenance, and extended lifespan
- Lead times for non-stocked items are generally 14-16 weeks. For urgent needs, please contact us to explore additional options.

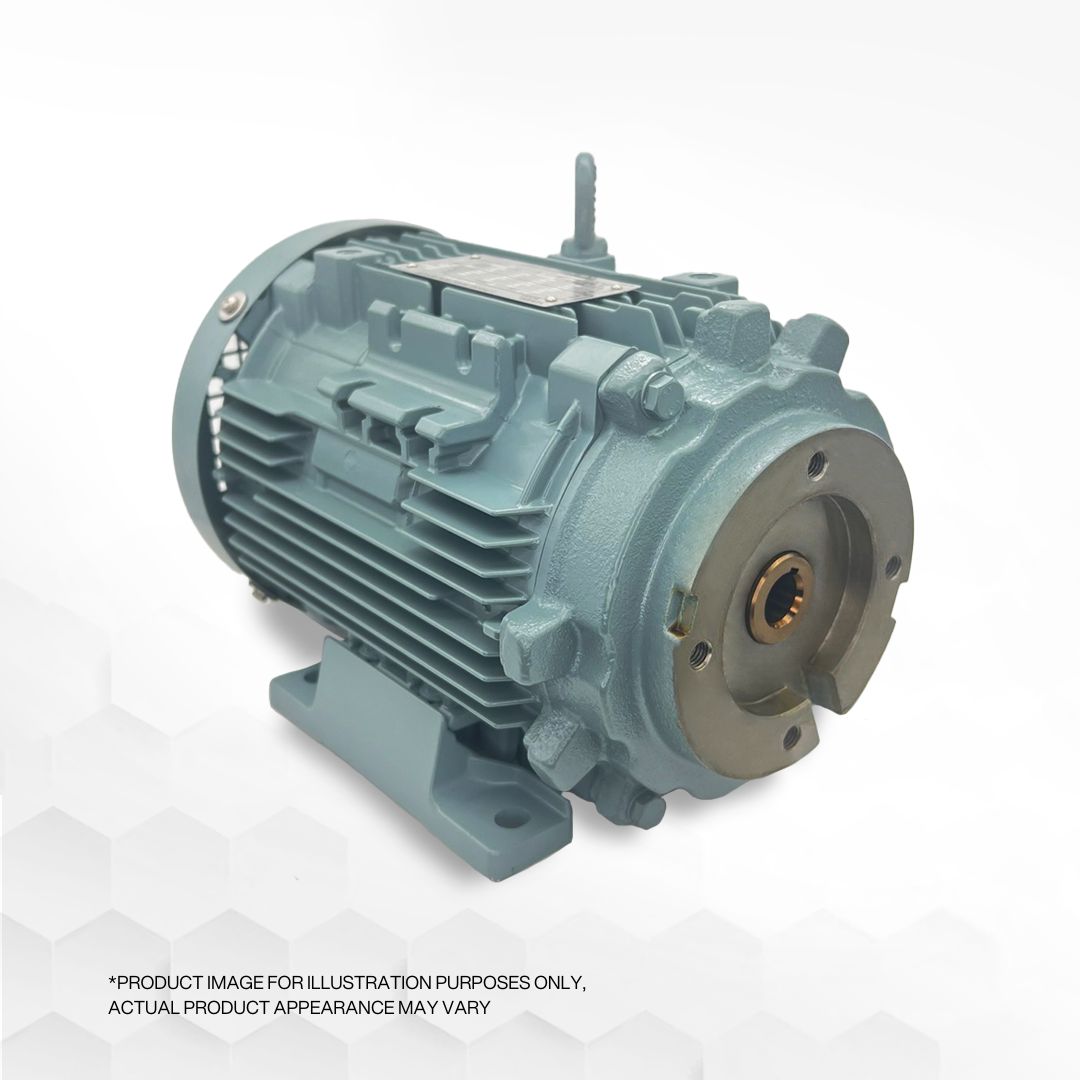

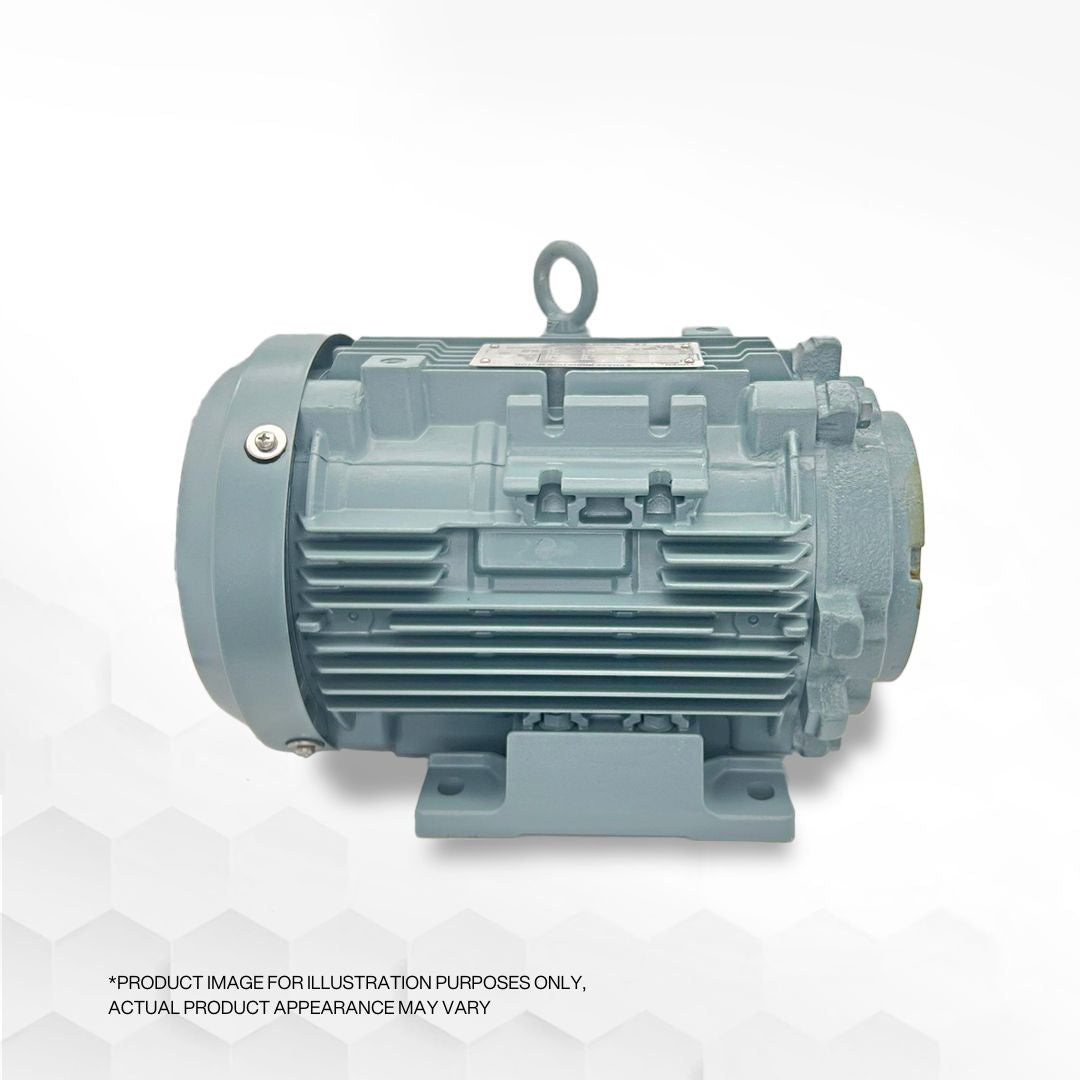

- Low noise, minimal vibration, and misalignment-free operation
- Power Output: 0.75 kW – 18.5 kW
- Voltage: 200-220V / 380-440V (50/60 Hz)
- Types: Directly connected (M1, M2) & Bell housing (M3-M7)
- Speed: 1440-1775 rpm
- Enclosure: IP44, Class F insulation
- Ideal for machine tools, automation, & hydraulic systems
- Pressure Reducing Valve / Pressure Reducing & Check Valve
- Remote Adjustment: Integrated port for external pressure regulation.
- Check Valve Models: Allows unrestricted reverse flow.
- High Durability: Built for demanding industrial environments.
- Max Pressure: 21 MPa (3050 PSI)
- Flow Capacity: Up to 250 L/min (66.0 U.S. GPM)
- Pressure Ranges: 0.7–20.5 MPa (102–2970 PSI)
- Connections: Rc (BSP) & NPT thread options.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
- Flow Control and Check Valve
- Max Flow: 4–500 L/min (1.06–132 U.S. GPM).
- Max Pressure: Up to 21 MPa (3050 PSI).
- Mounting: ISO-compatible sub-plate.
- Thread Options: Rc, BSP, NPT.
- Seals: Standard hydraulic oils, optional phosphate ester.
- Adjustment: Dial (FG-01), handle (larger models).
- Integrated check valve for free reverse flow (FCG).
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
- Pressure Control Valve.
- Flow rates: Up to 500 L/min (132 GPM).
- Max pressure: 21 MPa (3050 PSI).
- Mounting: Threaded (Rc, BSP, NPT) or sub-plate.
- Pressure adjustment range: 0.25–14 MPa (36–2030 PSI).
- Material: High-strength hydraulic-grade steel.
- Integral check valves for controlled reverse flow.
- Ideal for industrial automation, material handling, and hydraulic power units.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
- Direct Operated Proportional Electro-Hydraulic Directional and Flow Control Valve
- High response with ≤ 0.1% hysteresis & repeatability.
- 14 ms (01EH), 22 ms (03EH) for stable control.
- IP65-rated, contamination-resistant, and 35 MPa pressure handling.
- Onboard electronics (OBE) and 24V DC power supply.
- Max Flow: 01EH: 10-40 L/min
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Pilot Operated Directional Valve
- Precise flow management under high-pressure conditions.
- Versatile Configurations: Spring-centered, pressure-centered, no-spring, and spring-offset models.
- ISO 4401-compliant with options like built-in orifices and stroke adjustments.
- Valve Sizes: DHG-04, DHG-06, DHG-10; Max Pressure: 31.5 MPa (4,570 PSI)
- Flow Rates: Up to 1,100 L/min (291 GPM)
- Ideal for manufacturing, construction, and energy industries.
- Enhanced Reliability: Seal kits and pilot choke valves extend lifespan and functionality
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
30%
- Manually Operated Directional Valve.
- Provides precise manual hydraulic control for diverse industrial applications.
- Operates at pressures up to 31.5 MPa (4570 PSI) and flows up to 315 L/min.
- Models: DMG-01/03/04/06/10 and DMT-03/06/10 with ISO 4401-compliant mounting.
- Configurations: Spring-centered, no-spring detented, or spring-offset.
- Spool types: 2-way, 3-way, and 4-way options.
- Compact design with Rc, BSP.F, or NPT threaded ports.
- Special seals available for phosphate ester fluids.
- Ideal for reliable, flexible, and efficient hydraulic system control.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
