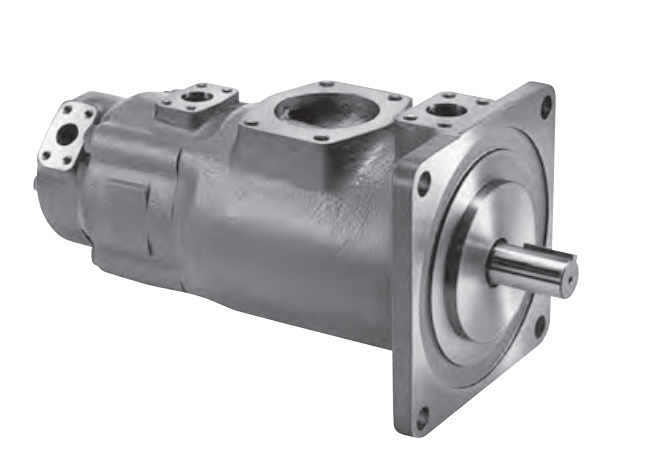

2520VQ12A8-1CC20-JA | High Performance Double Fixed Displacement Vane Pump

Introducing Tokyo Keiki's VQ Series: Your Solution for Hydraulic Excellence!

Shipping Notice: This item requires 1-2 weeks for packaging and preparation before shipment. We appreciate your patience as we ensure each order is carefully prepared.

Discover the VQ Series Double Fixed Displacement Vane Pumps by Tokyo Keiki, the pinnacle of hydraulic innovation. Designed for effortless maintenance and tailored customization, this pump incorporates cartridge kits to deliver unmatched quality, effortless maintenance and repairs, energy efficiency, and virtually silent operation. Elevate your hydraulic systems with our cutting-edge technology.

Specifications:

• Hydraulic Fluid:
  • Omit: Mineral oil-based fluid
  • F3: Phosphate ester fluid
• High Performance double fixed displacement vane pump for mobile applications
• Port Piping Connection:
  • A: SAE 4 bolt flange connection
• Pump Mounting:
  • Omit: Flange mounting
  • F: Foot mounting
• Anti-Wear Mineral Oil Max. Working Pressure: 17.5 – 21MPa
• Phosphate Ester Max. Working Pressure: 14MPa
• Shaft End Delivery Port Positions: Select A (Opposite Suction), B (90˚ CCW), C (Inline), or D (90˚ CW)
• Cover End Delivery Port Positions: Select A (135˚ CCW Opposite Suction), B (45˚ CCW), C (45˚ Inline), or D (135˚ CW from suction port

Elevate your hydraulic systems with Tokyo Keiki's VQ Series and experience the future of hydraulic excellence. #TokyoKeiki #CascadeIndustrial #VanePumps
