EDG-01-C-1-PNT09-51 | Relief Valve

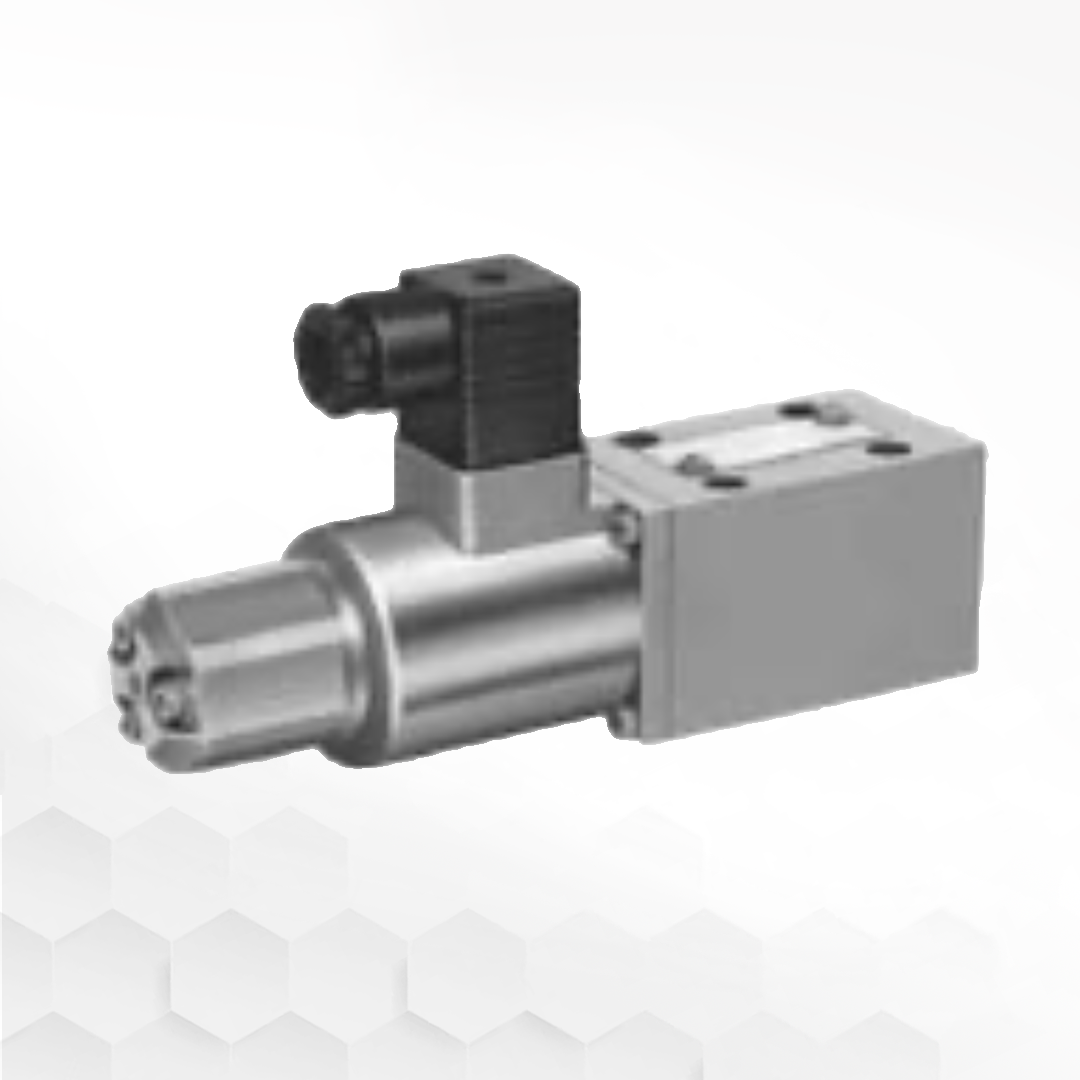

Introducing the Yuken EDG-01 Series Proportional Electro-Hydraulic Pilot Relief Valve, provides precise pressure control in hydraulic systems. These valves are designed for applications requiring proportional pressure regulation, offering superior accuracy and repeatability. Featuring a compact sub-plate mounting design, the EDG-01 Series ensures stable pressure control while maintaining a low flow rate. Ideal for industrial automation, manufacturing, and hydraulic machinery, these pilot relief valves work seamlessly with Yuken's power amplifiers for enhanced performance.

Specifications:

• Max. Operating Pressure: 24.5 MPa (3550 PSI)
• Flow Rate:
  * Max Flow: 2 L/min (0.53 GPM)
  * Min Flow: 0.3 L/min (0.08 GPM)
• Pressure Adjustment Range:
  * B-Type: 0.5 – 6.9 MPa (70 – 1000 PSI)
  * C-Type: 1.0 – 15.7 MPa (145 – 2275 PSI)
  * H-Type: 1.2 – 24.5 MPa (175 – 3550 PSI)
• Coil Resistance: 10 Ω
• Rated Current:
  * B-Type: 800 mA
  * C-Type: 900 mA
  * H-Type: 950 mA
• Repeatability: ±1%
• Hysteresis: ≤3%
• Mounting Type: Sub-plate
• Applicable Power Amplifier: AME-D-10, AME-D2-1010-11, SK1022- - -11
• Approx. Mass: 2 kg (4.4 lbs)

Choose the Yuken EDG-01 Series Proportional Electro-Hydraulic Pilot Relief Valve Perfect for hydraulic circuits where proportional pressure control is critical, and ensures reliable operation and efficient system performance. Its compact design allows seamless integration into existing hydraulic setups, reducing space requirements while maintaining high functionality. Additionally, the valve’s low hysteresis and high repeatability make it an excellent choice for precision-driven applications, ensuring stable pressure control even in demanding industrial environments. #ReliefValve #Yuken #CascadeIndustrial
