Proportional Relief Valves
- Maximum Working Pressure: 21MPa
- Flow Range: 400L/min
- Maximum Adjustable Pressure: 15MPa
- Rated Current: 1A
- Coil Resistance: 14Ω
- Hysteresis: <3%
- Repeatability: <1%
- Maximum Working Pressure: 21MPa
- Flow Range: 200L/min
- Maximum Adjustable Pressure: 7MPa
- Rated Current: 1A
- Coil Resistance: 14Ω
- Hysteresis: <3%
- Repeatability: <1%
- Maximum Working Pressure: 21MPa
- Flow Range: 200L/min
- Maximum Adjustable Pressure: 3.5MPa
- Rated Current: 1A
- Coil Resistance: 14Ω
- Hysteresis: <3%
- Repeatability: <1%
- Maximum Working Pressure: 21MPa
- Flow Range: 200L/min
- Maximum Adjustable Pressure: 15MPa
- Rated Current: 1A
- Coil Resistance: 14Ω
- Hysteresis: <3%
- Repeatability: <1%
- Maximum Working Pressure: 21MPa
- Flow Range: 80L/min
- Maximum Adjustable Pressure: 3.5MPa
- Rated Current: 1A
- Coil Resistance: 14Ω
- Hysteresis: <3%
- Repeatability: <1%
- Maximum Working Pressure: 21MPa
- Flow Range: 80L/min
- Maximum Adjustable Pressure: 3.5MPa
- Rated Current: 1A
- Coil Resistance: 14Ω
- Hysteresis: <3%
- Repeatability: <1%
- Maximum Working Pressure: 21MPa
- Flow Range: 80L/min
- Maximum Adjustable Pressure: 21MPa
- Rated Current: 1A
- Coil Resistance: 14Ω
- Hysteresis: <3%
- Repeatability: <1%
TOKYO KEIKI

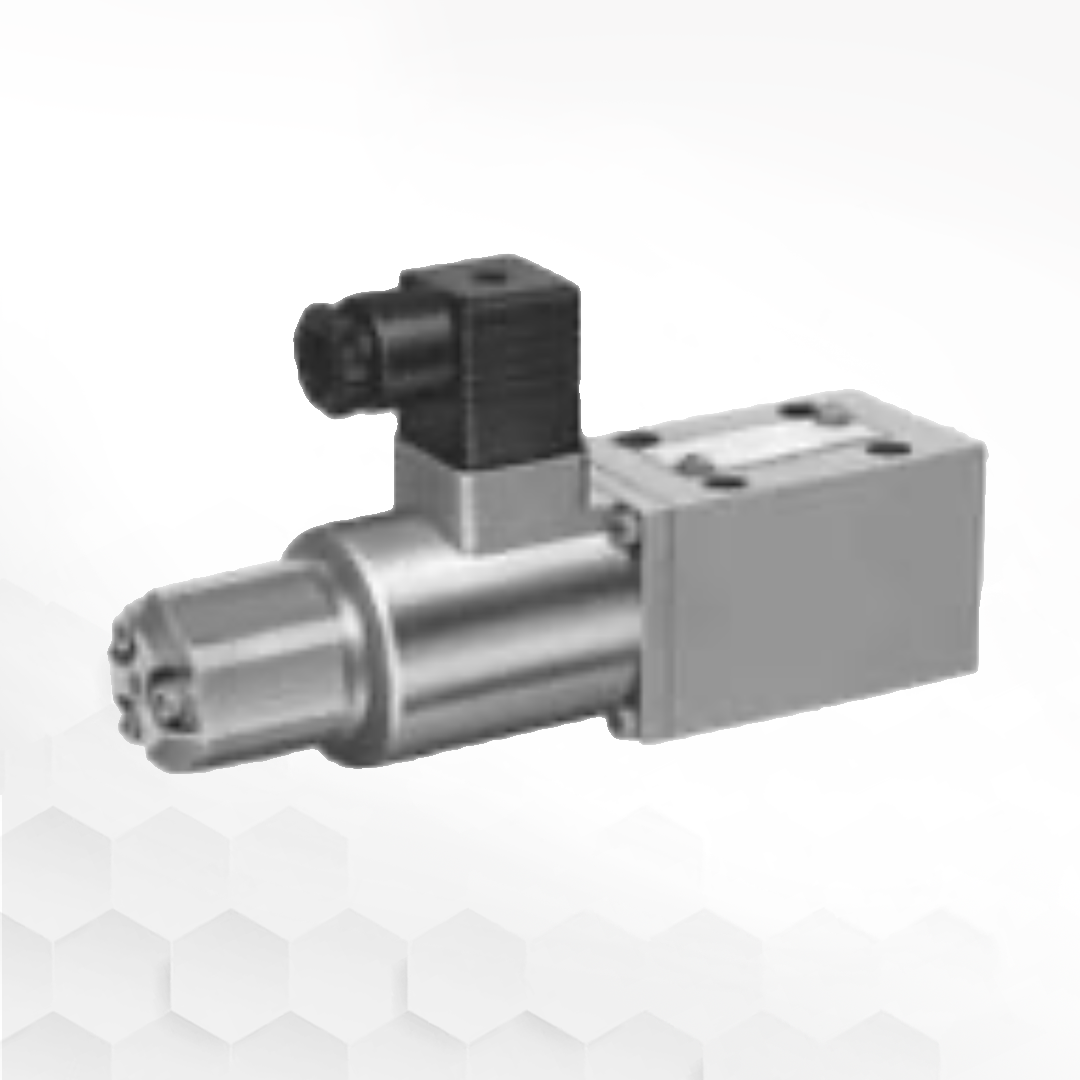

EPCGL-03-A-10-Y-12-S11C - Direct Operated Proportional Solenoid Relief Valve - EPCGL Series - 48228071
TOKYO KEIKI
EPCGL-03-A-10-Y-12-S11C - Direct Operated Proportional Solenoid Relief Valve - EPCGL Series - 48228071

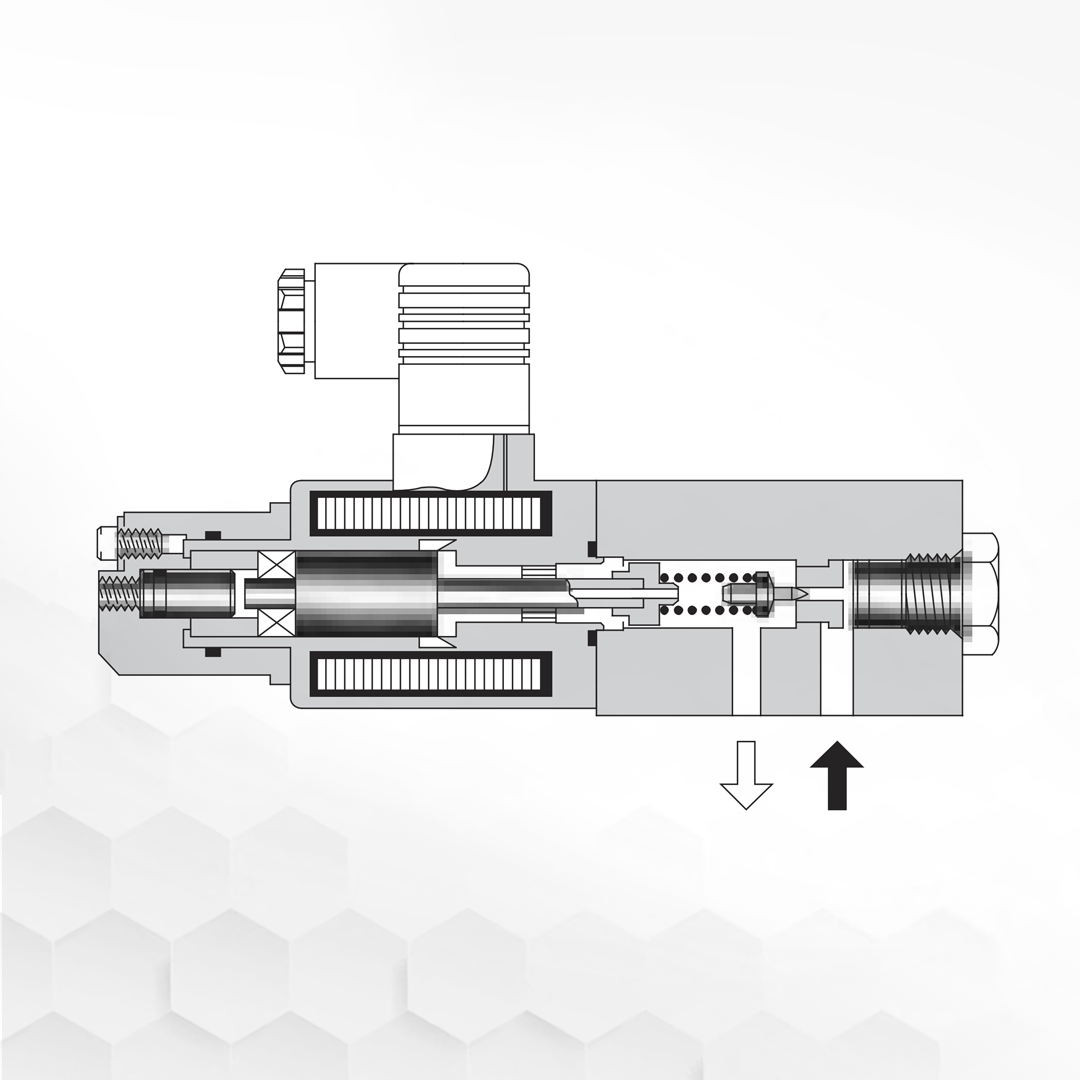

- Utilizes a proportional solenoid actuator to provide proportional control of hydraulic circuit pressure.
- The valve provides pressure control proportional to input current by connecting with small flow hydraulic systems, pilot operated pressure control valves or variable displacement pumps.
TOKYO KEIKI
EPCGL-06-A-10-Y-12 - Direct Operated Proportional Solenoid Relief Valve - EPCGL Series - 48245767
TOKYO KEIKI
EPCGL-06-A-10-Y-12 - Direct Operated Proportional Solenoid Relief Valve - EPCGL Series - 48245767
- Utilizes a proportional solenoid actuator to provide proportional control of hydraulic circuit pressure.
- The valve provides pressure control proportional to input current by connecting with small flow hydraulic systems, pilot operated pressure control valves or variable displacement pumps.
TOKYO KEIKI
EPCG3-01-350-10 - Direct Operated Proportional Solenoid Relief Valve - EPCG3 Series - 48265242
TOKYO KEIKI
EPCG3-01-350-10 - Direct Operated Proportional Solenoid Relief Valve - EPCG3 Series - 48265242
- Utilizes a proportional solenoid actuator to provide proportional control of hydraulic circuit pressure.
- The valve provides pressure control proportional to input current by connecting with small flow hydraulic systems, pilot operated pressure control valves or variable displacement pumps.
