- Solenoid Controlled Relief Valve
- Combines a pilot-operated relief valve and solenoid valve for compact hydraulic control.
- Eliminates external piping, simplifying installation and reducing leak points.
- Allows remote pump pressure unloading via electrical signals or pilot relief valves.
- Optional vent restrictor minimizes pressure shocks for smoother operation.
- Handles up to 25 MPa (3630 PSI) for demanding industrial environments.
- Pressure adjustment ranges: 100 MPa (Model 03), 200 MPa (Model 06), 400 MPa (Model 10).
- Vent restrictor types: 2B3A and 2B3B.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.

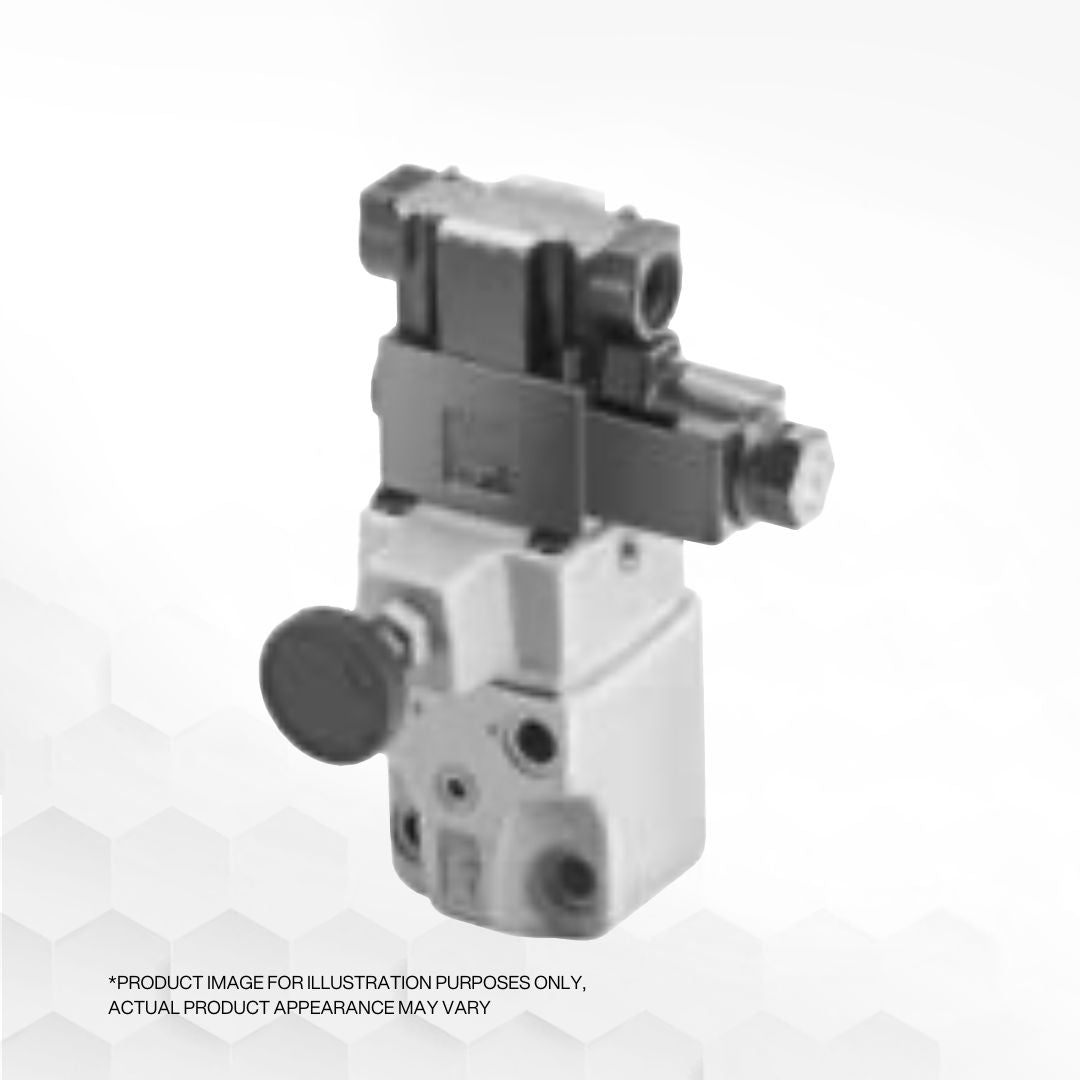

Introducing the Yuken BSG Series Solenoid Controlled Relief Valve integrates a pilot-operated relief valve with a solenoid-operated directional valve, offering efficient and compact hydraulic control. The solenoid valve is directly mounted on the relief valve and connected to its vent, eliminating the need for external piping. This design allows remote pump pressure unloading through electrical signals or connecting pilot relief valves to the solenoid valve ports.
Optional vent restrictor models enhance performance by minimizing pressure shocks during unloading, ensuring smoother operation and circuit protection.
Specifications:
- Maximum Operating Pressure: 25 MPa (3630 PSI)
-
Pressure Adjustment Range:
o Model 03: 100 MPa (26.4 GPM)
o Model 06: 200 MPa (52.8 GPM)
o Model 10: 400 MPa (106 GPM. -
Vent Restrictor Type:
o Gradually reduces venting pressure during unloading to prevent pressure shocks.
o Applicable Vent Types: 2B3A and 2B3B.
Choose Yuken BSG Series Solenoid Controlled Relief Valve Perfect for demanding hydraulic systems, the Yuken Solenoid Controlled Relief Valve ensures reliable performance, precision, and operational efficiency. Its streamlined design simplifies installation with no external piping, the remote operation allows easy pump pressure unloading via electrical signals, and the vent restrictor option ensures smooth pressure transitions. Designed to withstand pressures up to 25 MPa, it is ideal for industrial use. #ReliefValve #Yuken #CascadeIndustrial
Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
