- High-Accuracy Position Sensor.
- Ultra-high resolution: 0.1 µm for precise measurement.
- Fast measurement cycles: 250 μs, 500 μs, or 1 ms.
- Ultra-thin sensor head: 8 mm, ideal for tight spaces.
- Multi-channel controller: Supports up to 4 sensor heads.
- Versatile communication options: RS-485 (Modbus RTU), MECHATROLINK-III, EtherCAT.
- Sensing range: 10 to 1000 mm (depending on model).
- High repeatability: ±1 µm or less.
- Operating conditions: 0 to 50°C, 30 to 85% RH.
- Protection: IP40, power reverse connection protection.
- Out of Stock Models: Estimated Arrival 3 to 4 Weeks

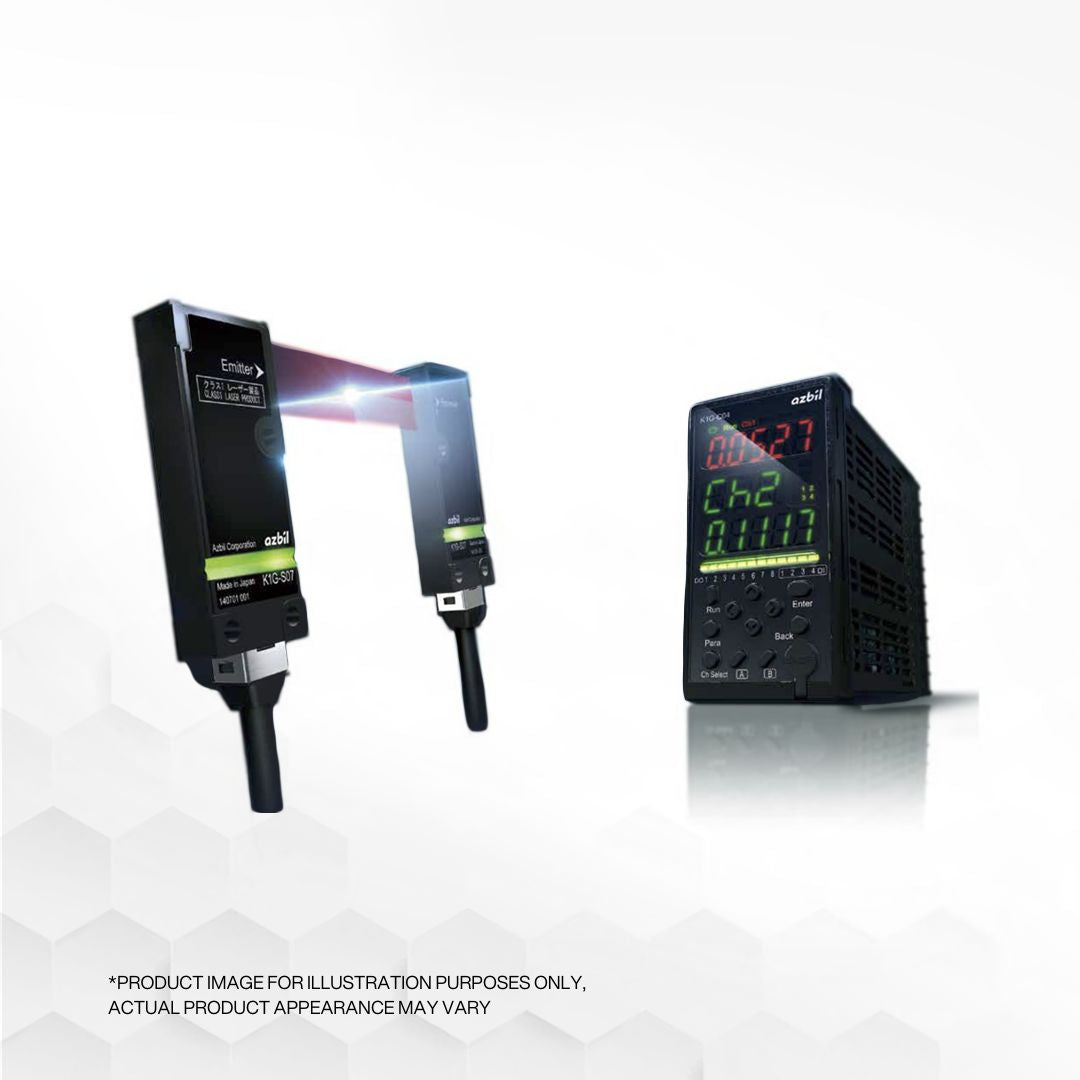

Introducing the Azbil K1G Series High-Accuracy Position Sensor, engineered to exceed industry standards. These advanced laser sensors combine a CMOS linear image sensor with collimated lasers, offering ultra-high resolution and rapid measurement capabilities, making them ideal for critical applications such as in-line glass edge inspection and wafer alignment in IC manufacturing.
With a groundbreaking resolution of 0.1 µm, the K1G Series sets the benchmark for precision, detecting even the smallest variations and fluctuations that conventional sensors may miss. The ultra-thin sensor head, just 8 mm thick, ensures easy installation in space-constrained environments.
Specifications:
-
K1G-C04, K1G-C04M, K1G-C04E, K1G-C04G, K1G-C04MG, K1G-C04EG,
Compatible sensor: K1G-S
Max. number of connected sensors: 4
Display range with K1G-S07: 0 to 7 mm or -3.5 to +3.5 mm can be selected
Display range with K1G-S15 : 0 to 15mm or -7.5 to +7.5 mm can be selected
Measurement cycle (Output update cycle): 250 μs / 500 μs / 1 ms (switchover) *1 *3
Supply power: DC12 to 24V ±10%
Operating temperature: 0 to 50 °C (0 to 35 °C if gang-mounted)
Storage temperature: -20 to 70 °C (without freezing)
Operating humidity: 30 to 85 % RH (without condensation)
Vibration resistance: 2 m/s2 (10 to 60 Hz), 2 h each in X, Y and Z directions.
Protection circuit: Power reverse connection protection -
K1G-S07, K1G-S15
Detection type: Thru-scan (Emitter, Receiver set)
Sensing distance: K1G-S07: 10 to 500 mm , K1G-S15: 10 to 1000 mm
Sensing width: K1G-S07: 7 mm, K1G-S15:15 mm
Light source: Red semiconductor laser (light emission peak 650 nm), JIS Class 1
Standard target: Opaque knife edge
Repeatability: ±1 µm or less *1
Moving accuracy: 20 μm or less when moved 0.5 mm *2
Temperature characteristics of sensor: 0.1%F.S./℃
Indicator lamp: Operation indicator: yellow LED
Operating temperature: 0 to 50℃
Storage temperature: -20 to 70 °C (without freezing)
Operating humidity: 30 to 85 % RH (without condensation)
Vibration resistance: 9.8 m/s2 (10 to 55 Hz), 2 h each in X, Y and Z directions
Protective structure: IP40 (IEC standard)
Connection type: 220 mm connector cable -
K1G-L
K1G-L (250 µs: 5 m or less), (500 µs: 20 m or less), (1 ms: 25 m or less),
K1G-L01 (1 m) Standard cable ; Standard junction cables (2)
K1G-L03 (3 m) Standard cable ; Standard junction cables (2)
K1G-L05 (5 m) Standard cable ; Standard junction cables (2)
K1G-L10 (10 m) Standard cable ; Standard junction cables (2)
K1G-L25 (25 m) Standard cable ; Standard junction cables (2) -
K1G-R
K1G-R (250 µs: 3 m or less), (500 µs: 5 m or less), (10 ms: 25 m or less),
K1G-R01 (1 m) Bend- tolerant cable ; Bend-tolerant junction cable (1)
K1G-R03 (3 m) Bend- tolerant cable ; Bend-tolerant junction cable (1)
Upgrade your precision measurement with the Azbil K1G Series High-Accuracy Position Sensor, where high performance meets reliability. with its multi-channel controller that supports up to four sensor heads, offering versatile measurement options across multiple applications. #HighAccuracySensor #Azbil #CascadeIndustrial
Note: Out of stock items usually have a lead time of 3-4 weeks. Upon receipt of your order, delivery will be reconfirmed with the factory to ensure accurate timelines.
