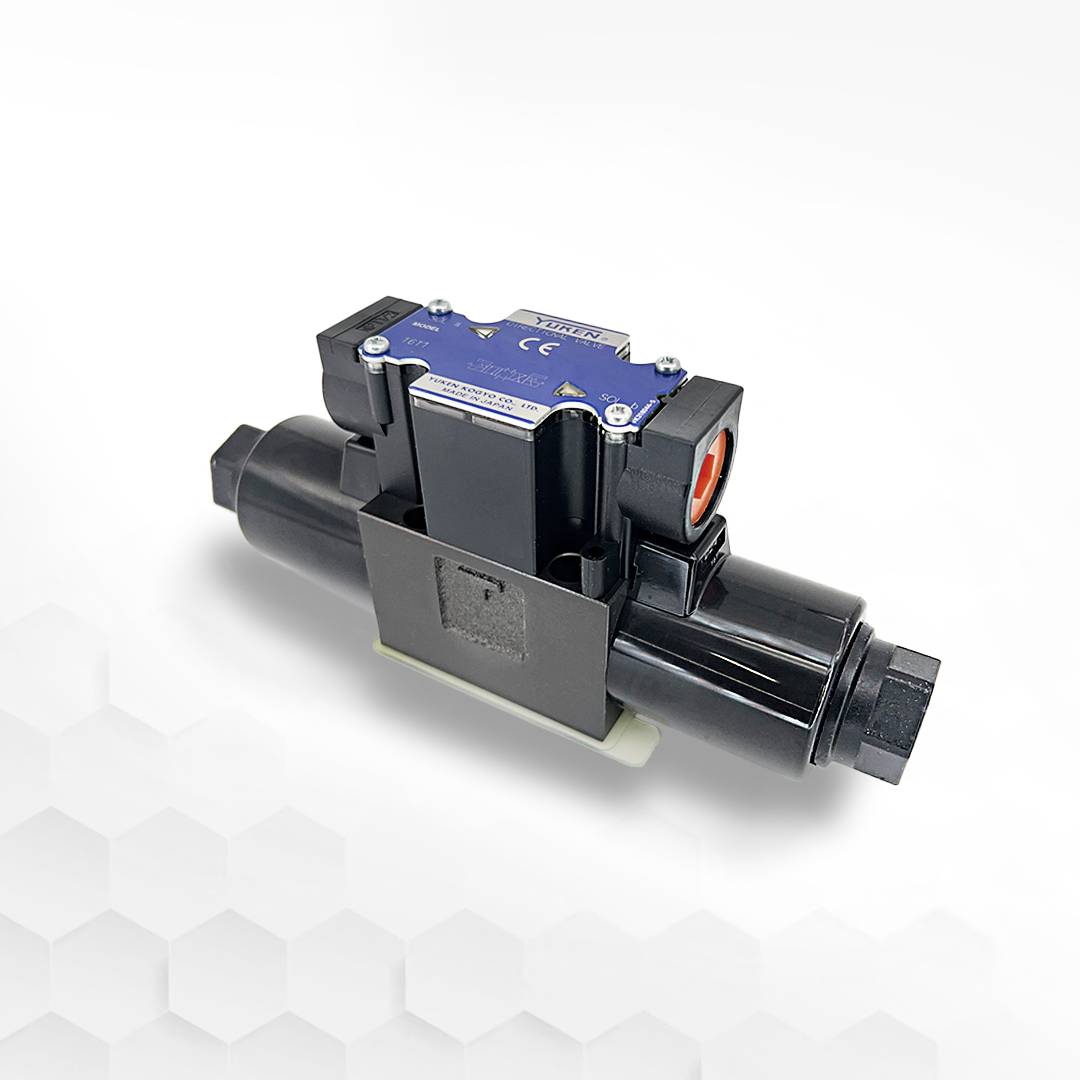

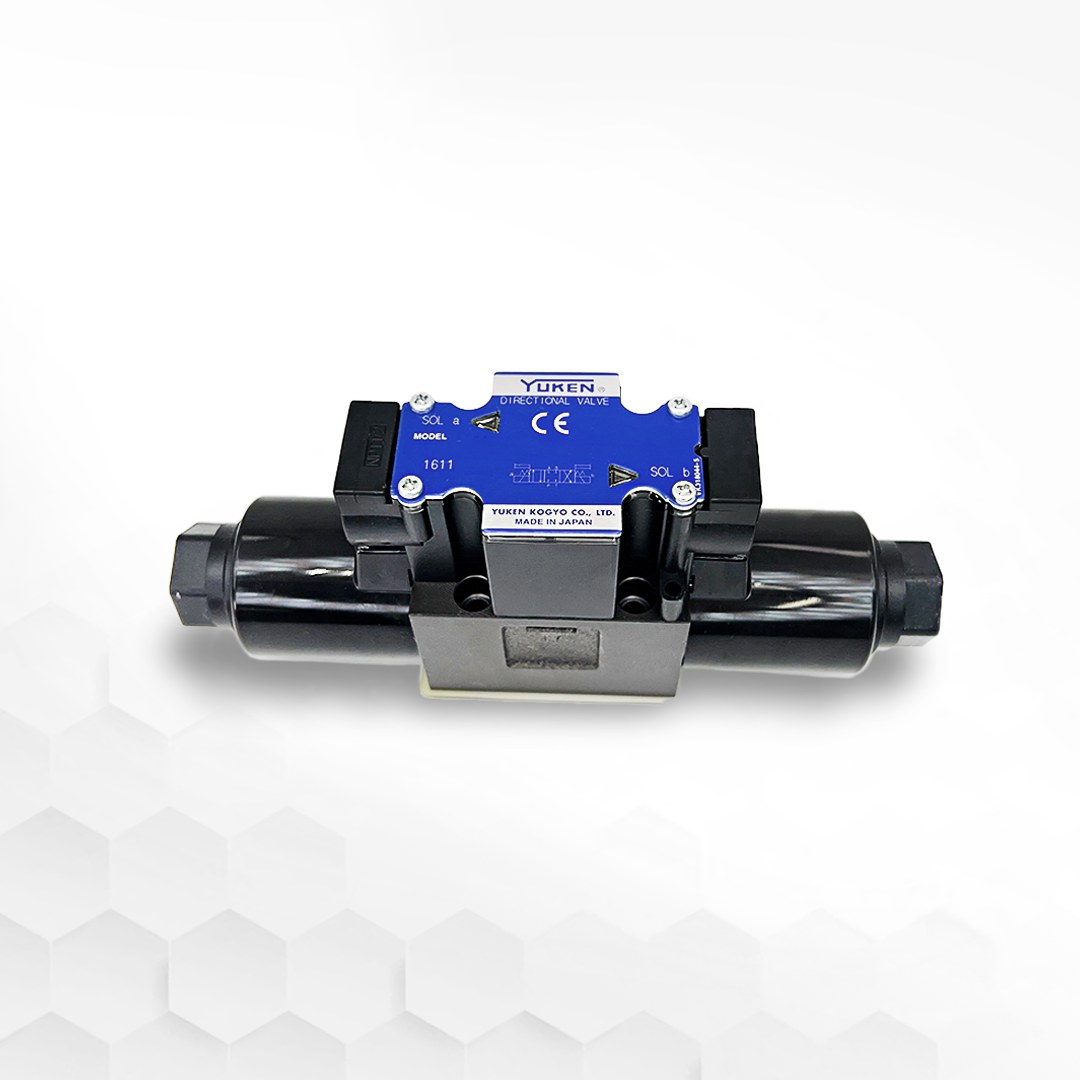

DSG-01-2D4A-A120-N-7090 | Solenoid Operated Directional Valve

Introducing the Yuken DSG-01 Series, the ultimate Solenoid Operated Directional Valves delivering unparalleled performance and efficiency. With a powerful wet type of solenoid and optimized flow channel design, these valves offer high pressure, high flow, and low pressure drop benefits.

Specifications:

• Max. Operating Pressure: 35 MPa (5080 PSI)
• Max. T-Line Back Pressure: 21 MPa (3050 PSI)
• Max. Flow Rate: 100 L/min (26.42 U.S.GPM)
• Low Pressure Drop: 0.9 MPa (131 PSI)
• Compact & Lightweight: 205 mm (8.07 inch) length, 1.85 kg (4.08 lbs.) mass
• Shockless Type Available: Minimize noise and vibration during spool changeover.
• Stable Operation: Tolerant to contaminants, ensuring stable performance.
• IP65-equivalent High Dust- and Waterproof: Excellent protection against dust and water
• Global Usability: CE certified for overseas equipment installation; UL/CSA certified products available.


Upgrade your systems with the Yuken DSG-01 Series, combining innovation, reliability, and environmental consciousness. Experience the future of directional valves today! #DirectionalValve #Yuken #CascadeIndustrial

Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
