- Fluid type choices include Mineral Oil / Water Glycol (Standard) or Phosphate Ester (F3)
- Multiple Pressure Adjustment Ranges to choose from
- Maximum Flow Rate Up to 280L/min.
- Models: XG, XGL (Low Pressure), XCG (with Check Valve)
- Unparalleled Reliability and Precision.

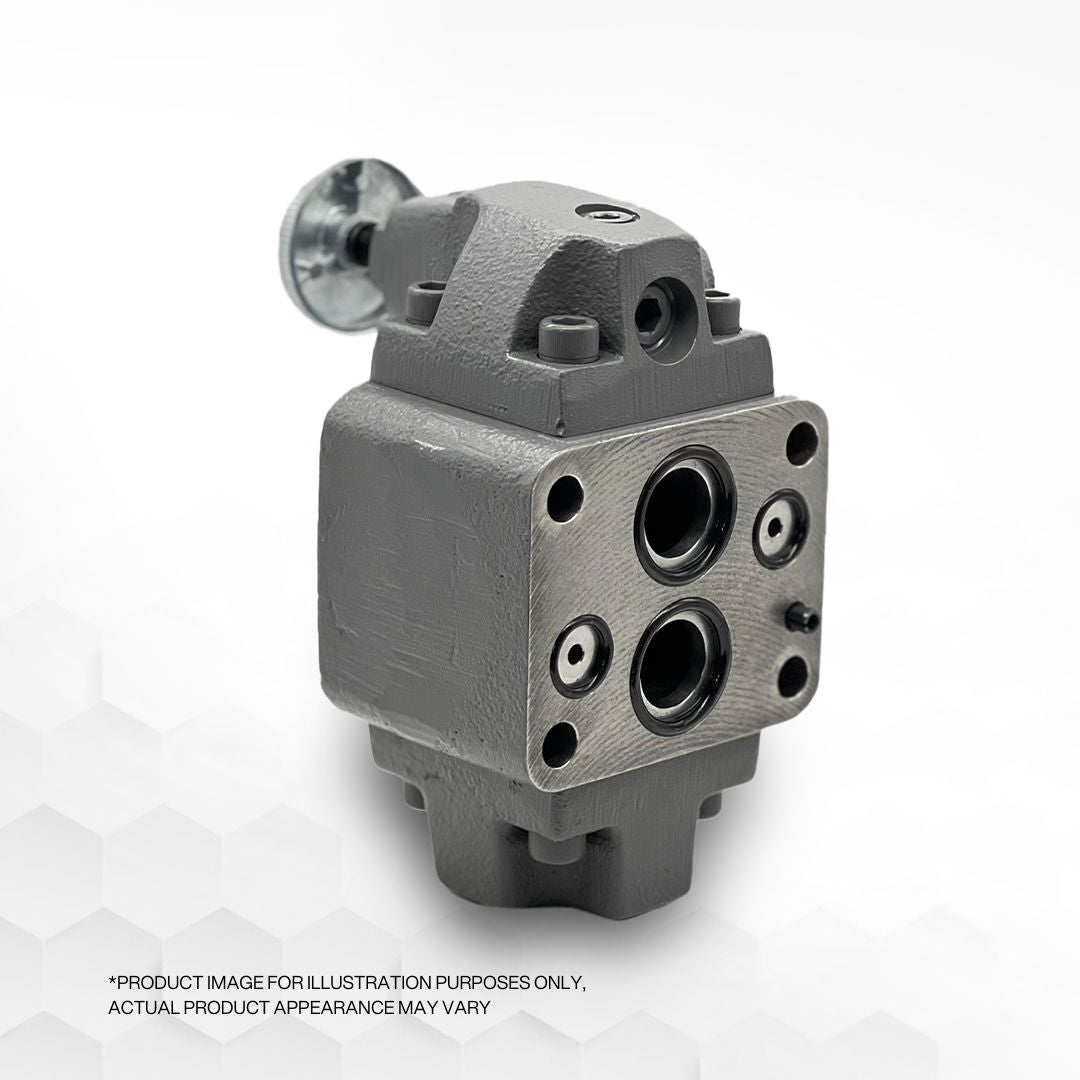

Introducing Tokyo Keiki's XG Series Pressure reducing valve, the pinnacle of hydraulic efficiency and precision. Crafted with innovation in mind, the XG Series Pressure Reducing Valve ensures optimal performance in various applications, a gasket-mounted marvel with an integrated check valve for enhanced functionality.
Specifications:
- Fluid type choices include Mineral Oil / Water Glycol (Standard) or Phosphate Ester (F3)
-
Pressure Adjustment Range:
- B: 0.7-20MPa
- D: 1.16-20MPa
- F: 1.58-20MPa
-
Maximum Flow:
- B: 95L/min.
- D: 190L/min.
- F: 280L/min.
Features:
- Pressure Control: Valve is employed to establish pressure in the branch circuit lower than that of the main circuit.
- Remote Pressure Adjustment: Connect a remote control valve (like CGR-02, C-175, etc.) to the vent port for the convenient remote adjustment of branch circuit pressure.
- Reducing Valve Function: When used as a reducing valve with a check valve, it enables unrestricted flow from the reduced pressure circuit (B) to the main circuit (A).
Engineered for reliability and longevity, the XG Series exemplifies Tokyo Keiki's commitment to excellence. Elevate your hydraulic systems with a valve that goes beyond industry standards. Trust Tokyo Keiki for unmatched quality and precision. #TokyoKeiki #HydraulicInnovation #XCGSeries
