- Offers precise control, spool travel monitoring, overcurrent, and deviation alarms.
- Power Supply: DC 48 V (200 VA) / DC 24 V (75 VA).
- Rated Output Current: ±2 A (4 A Peak for D48, 3 A Peak for D24).
- Input/Output: ±10 V, 4-20 mA, ±10 mA signals.
- Alarm Outputs: Max 50 VDC, 30 mA.
- Operating Temperature: 0-50 °C; Humidity: 20-90% RH.
- Linear Servo Amplifier drives high-speed LSVG/LSVHG linear servo valves.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.

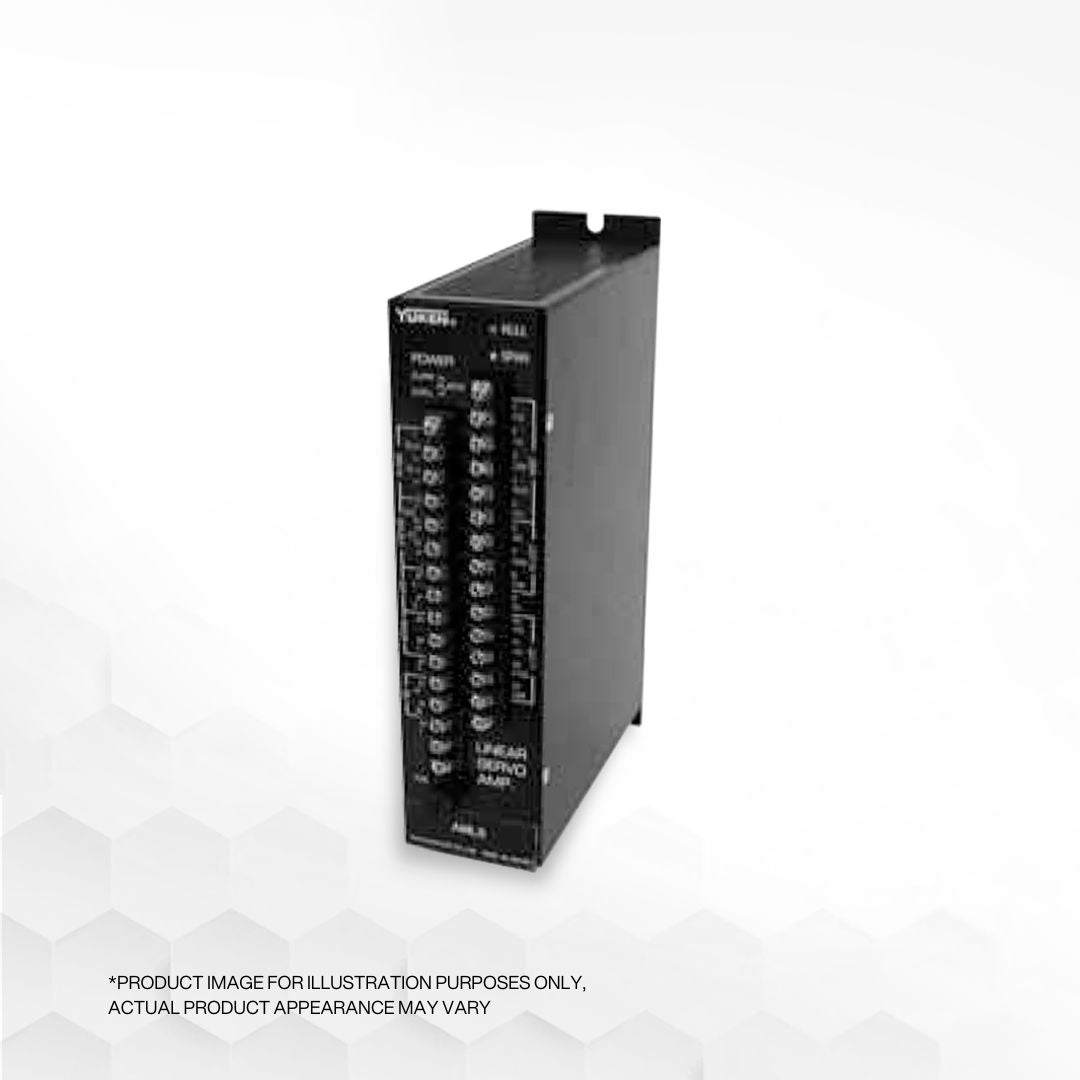

Introducing the Yuken AMLS Series Linear Servo Amplifier is specifically designed to drive high-speed linear servo valves from the LSVG and LSVHG series. Engineered for optimal performance, this amplifier ensures precise control and maximum valve efficiency. With built-in monitoring for spool travel, overcurrent, and deviation alarm outputs, it offers reliable performance and enhanced safety in challenging industrial environments. Its support for both voltage and current signal inputs allows for flexible integration into various control systems.
Specifications:
-
Power Supply:
o DC 48 V ± 2.4 V (200 VA or more)
o DC 24 V ± 1.2 V (75 VA or more) -
Rated Output Current:
o Continuous ± 2 A (4 A Peak for D48, 3 A Peak for D24) -
Input/Output Signal:
o Voltage Signal ± 10 V (Ri = 100 kΩ, RL ≥ 10 kΩ)
o Current Signal 4 - 20 mA (Ri = 200 Ω, RL ≥ 100 - 500 kΩ)
o Current Signal ± 10 mA (Ri = 200 Ω, RL ≥ 100 - 500 kΩ) -
Control Inputs:
o Servo “ON” Input/Alarm Reset: +15 to +28 VDC, 2.2 kΩ -
Alarm Outputs:
o Overcurrent/Deviation: Max. 50 VDC, 30 mA - Operating Temperature: 0 - 50 °C (32 – 122 °F)
- Humidity: 20 - 90 %RH (No Condensation)
Upgrade your control system with the Yuken AMLS Series Linear Servo Amplifier for precise and reliable performance in demanding applications. Its optimized design for high-speed linear servo valves ensures smooth and accurate valve control, making it a dependable choice for industrial environments. #Amplifier #Yuken #CascadeIndustrial
