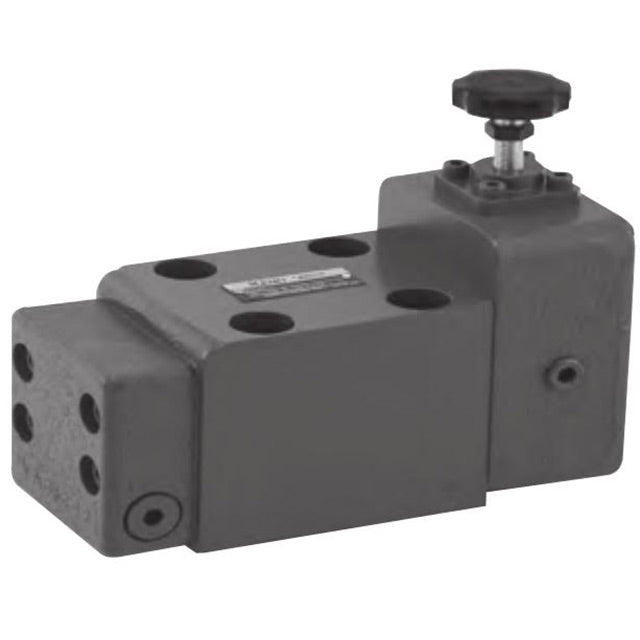

CGL-10-A-10-Y-12 | Low Pressure Control Valve

• This low-pressure control valve provides stable control over the low pressure range from almost 0 MPa to 4 MPa.
• The E2 version enables 3 stage - all close, pressure control, all open - control by directing the pilot pressure to two pilot ports.
• Valve is ideal for low back pressure control of the injection cylinder of injection molding machines.

Note - All standard options are omitted from the product model number.

Hydraulic fluid

• Standard - mineral oil-based fluid, water glycol-based fluid
• F3 - Phosphate ester-based fluid

Size - 03, 06, 10

Max. adjustable pressure

• A - 3.5MPa

Pilot pressure

• 10 - Control pressure above +1.2
• 20 - Control pressure above +2.4

Pilot port type

• Standard - E1, E2 port (common)
• E2 - E1, E2 port (differentiated)

Drain

• Standard - Internal drain
• Y - External drain
