Yuken

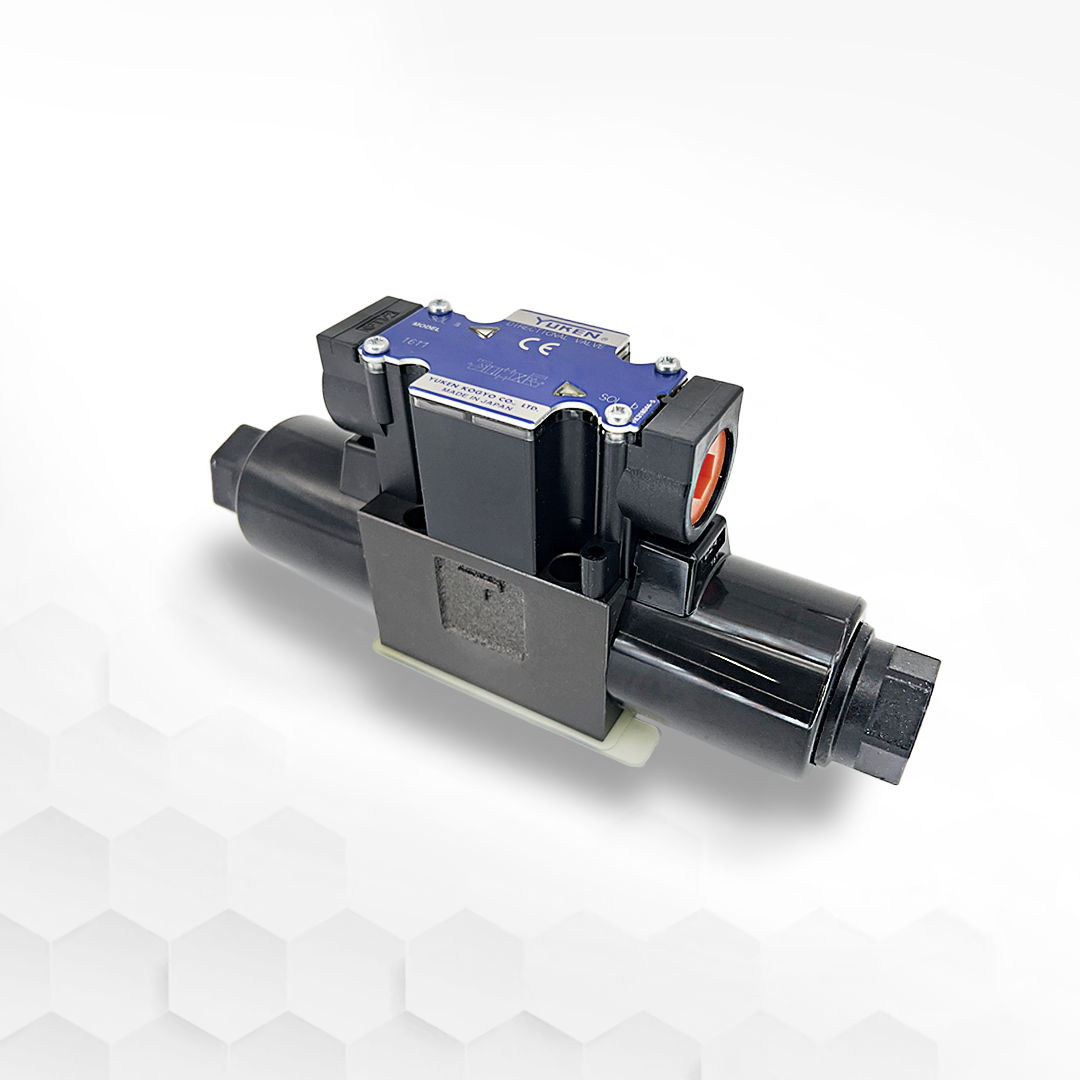

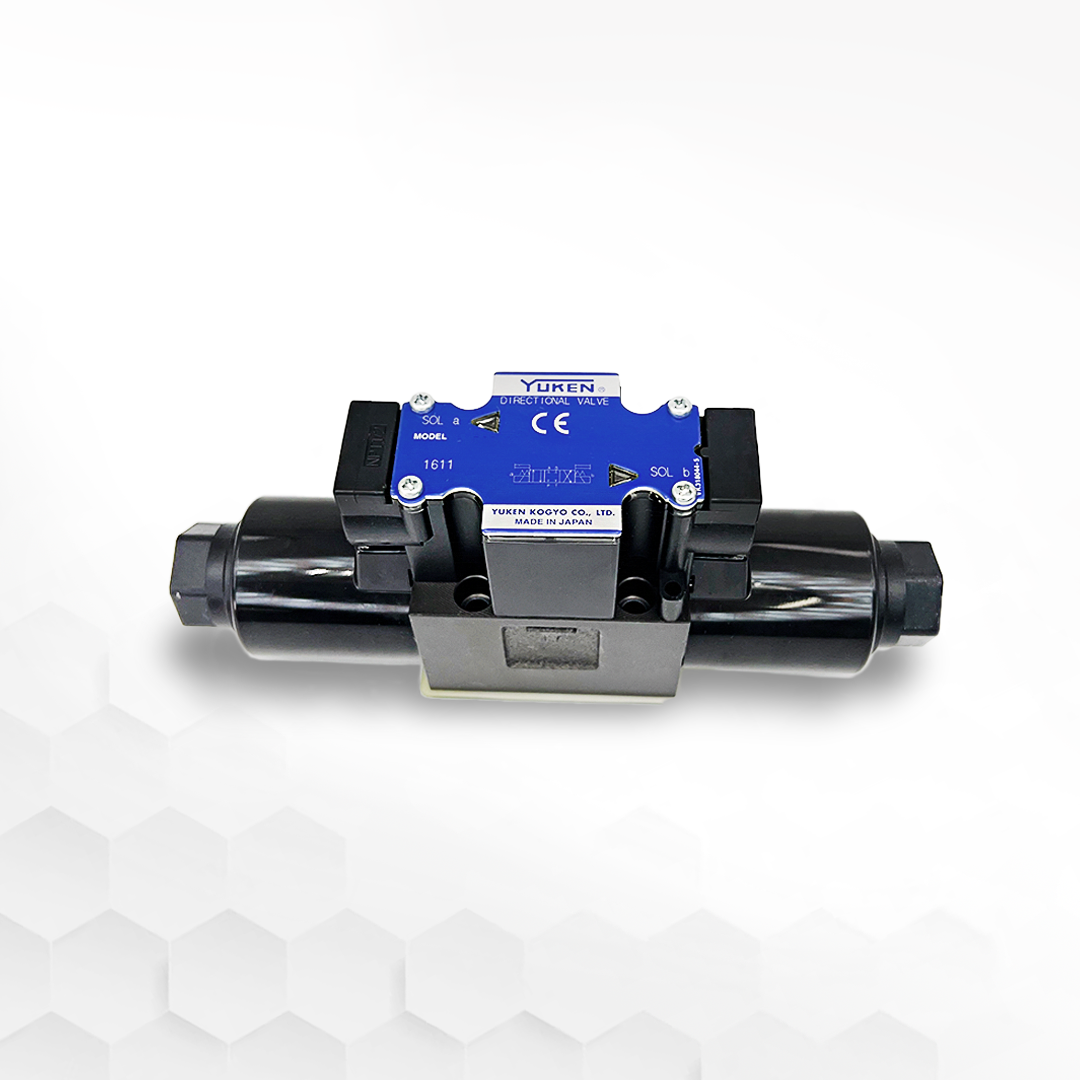

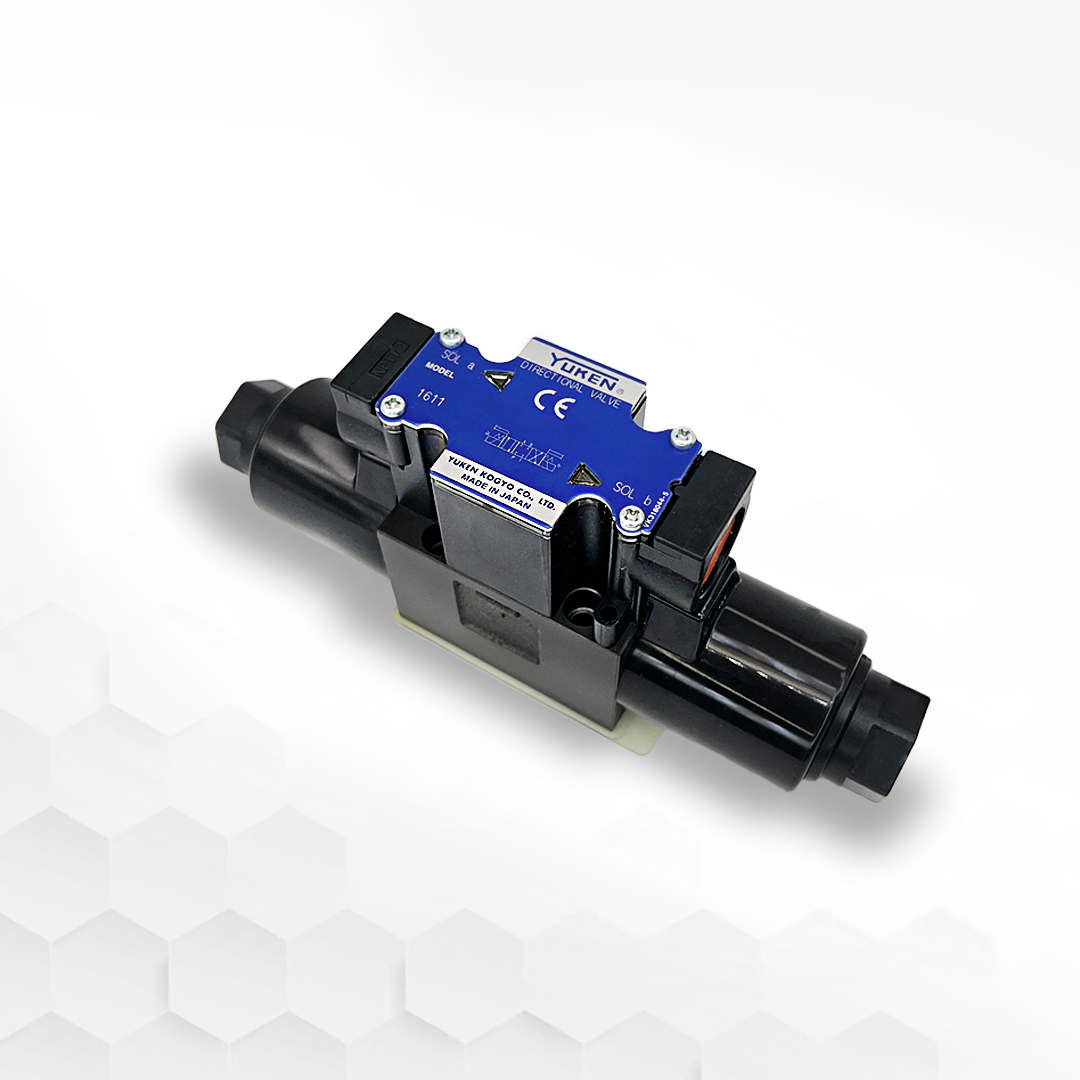

DSG-01-3C4-R120X1-C-70 | Solenoid Operated Directional Valve
Product SKU: DSG-01-3C4-R120X1-C-70
Available:
In stock
In stock
In stock
Out of stock
Pre Order
Back in stock
$7,076.30
Introducing the Yuken DSG-01 Series, the ultimate Solenoid Operated Directional Valves delivering unparalleled performance and efficiency. With a powerful wet type of solenoid and optimized flow channel design, these valves offer high pressure, high flow, and low pressure drop benefits.
Specifications:
- Max. Operating Pressure: 35 MPa (5080 PSI)
- Max. T-Line Back Pressure: 21 MPa (3050 PSI)
- Max. Flow Rate: 100 L/min (26.42 U.S.GPM)
- Low Pressure Drop: 0.9 MPa (131 PSI)
- Compact & Lightweight: 205 mm (8.07 inch) length, 1.85 kg (4.08 lbs.) mass
- Shockless Type Available: Minimize noise and vibration during spool changeover.
- Stable Operation: Tolerant to contaminants, ensuring stable performance.
- IP65-equivalent High Dust- and Waterproof: Excellent protection against dust and water
-
Global Usability: CE certified for overseas equipment installation; UL/CSA certified products available.
Upgrade your systems with the Yuken DSG-01 Series, combining innovation, reliability, and environmental consciousness. Experience the future of directional valves today! #DirectionalValve #Yuken #CascadeIndustrial
Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
